What you’ll accomplish

You will open the Screen pairing dialog and prepare a Cloud, Edge, or offline display for your workspace.

​
Prerequisites

  • Owner, Admin, or another role with Screen pairing permission.
  • For a Cloud Screen, a display showing a valid six-digit Layarva pairing code.

​
Steps

  1. In the sidebar, select Screens.
  2. Select Pair Screen.
  3. Choose the device type:
    • Cloud for a device that displays a pairing code and fetches from Layarva.
    • Edge for a television served by Layarva Edge on a branch network.
    • Offline content for a package imported manually.
  4. For a Cloud Screen, enter a recognizable device name and the six-digit code shown on the display.
  5. Decide whether to enable unlock PIN protection. If enabled, enter a numeric passcode containing 4–6 digits.
  6. Optionally assign a Location and Channel.
  7. Confirm the target resolution and content fit.
  8. Select Pair Device.

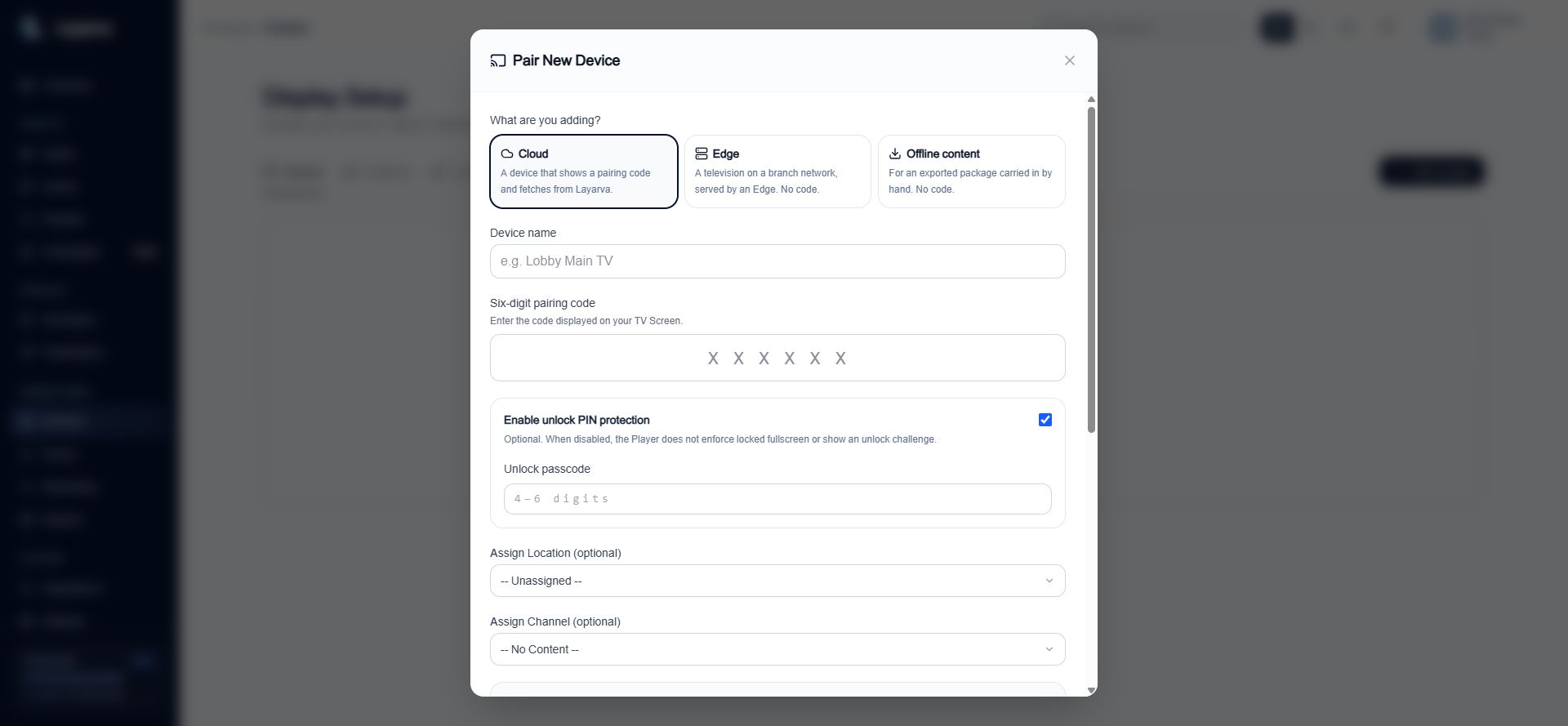

Pair New Device dialog with Cloud, Edge, and offline choices

The pairing dialog keeps device type, security, assignment, and output settings in one workflow.

​
Expected result

The new Screen appears on the Devices tab. A Cloud Player starts receiving content when it is paired, assigned to a Channel, and allowed to play.

​
Important notes

  • Pairing codes expire and must never be copied into documentation or support screenshots.
  • An unlock passcode is a device security control, not the pairing code.
  • A Screen may be paired before it is assigned content.

​
Troubleshooting

  • Generate a new code on the display if the existing code has expired.
  • Verify that all six digits were entered in the correct order.
  • If Pair Device remains disabled, check the required name, code, and unlock-passcode fields.
BELUM TERVERIFIKASI: A fresh Browser Player pairing-code screen could not be captured because the connected Chrome profile is already paired to a different display. No existing device session was reset.
